Machining
Using a combination of CNC , Conventional and non Conventional Machining Operations and Techniques we are able to break down the most complex component design into simpler subassemblies . We are able to achieve economies in machining cost by bifurcation of the job into simpler sub assemblies.

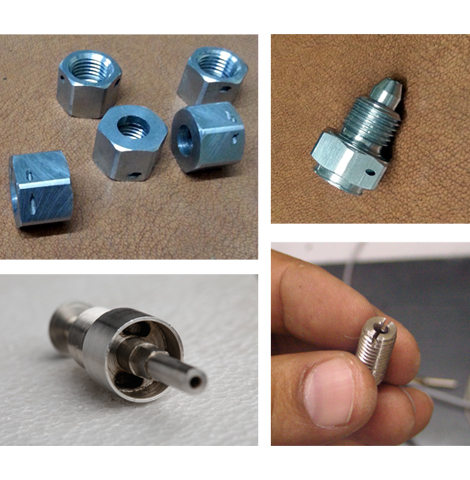

CNC Machining of Sensor Process Mounting Fittings.
EDM Drilling of Holes on Sensor
Fine Thread M5 Machining
Mill Slot on Process Adaptor.

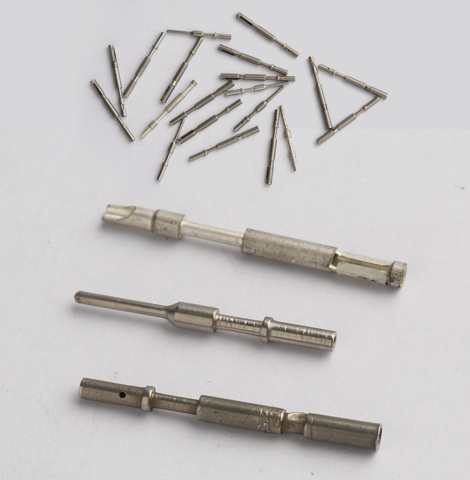

Machining of Thermocouple Alloys – Chromel / Alumel
Machined from ∅ 3.2mm Nickel Alloy Rod
Operations include Milling Slots , Drilling of ∅ 0.5mm and ∅1.5mm Holes
Pin and Sockets for use with MIL C 5015 Connectors.

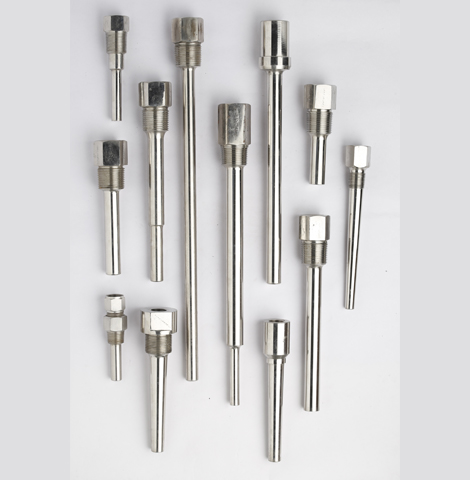

Machining of Thermowells - Barstock OR Builtup

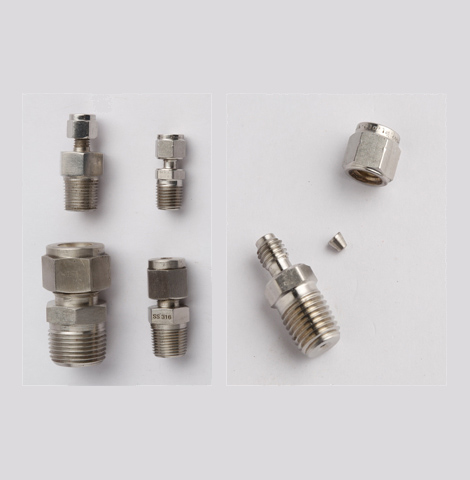

Swagelok Type Compression Fitting – Through Bore – For Thermocouple and RTD Sensors
Suitable for Sensor Diameters from 1mm to 6,.35mm
Swiss Screw Machining - SS Ferrules for Compression Fitting
Bore ID : 1.6mm

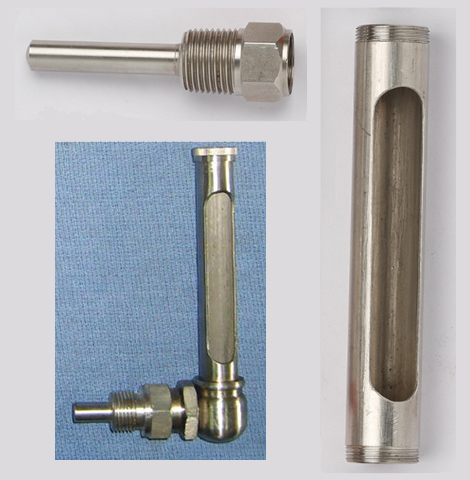

Stainless Steel Body for Liquid in Glass Thermometers
Precision Fine Threads for caps and Thermowell mating parts.

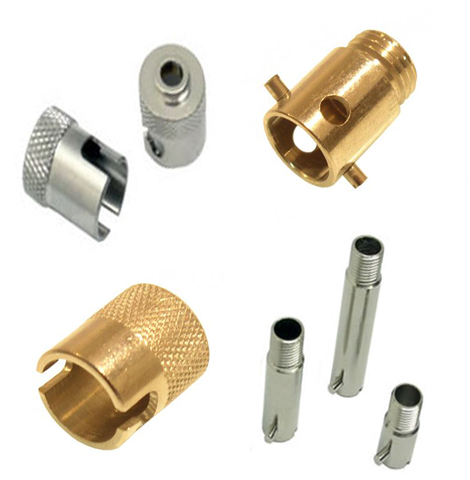

Bayonet Caps and Fittings used in manufacture of thermocouple and RTD assemblies for the Plastic Industry.

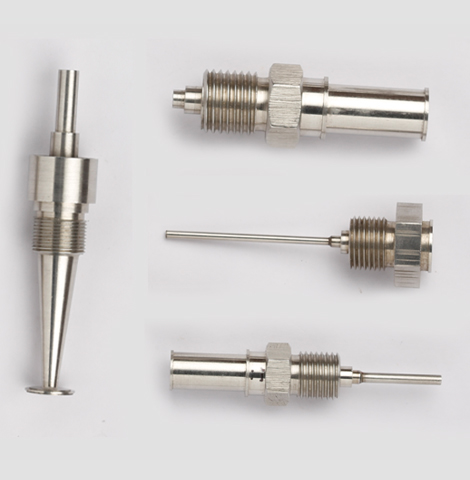

CNC Machining of Sensor Enclosure in Stainless Steel.
Fine Threads ,Close Tolerances

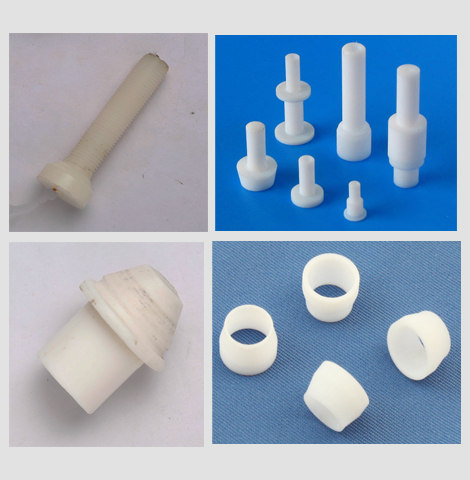

Machining of Teflon Components
