Build Your Sensor

We specialize in manufacture of built to order temperature probe assemblies. Our custom build philosophy offers solutions that are not readily available with standard off the shelf products. We can work from your drawing/sketches/schematics /description / idea, or reverse engineer a obsolete sensor to meet your exact requirements. We will convert a concept into a product. View some of our executed projects in our Sample Gallery

Design your sensor assembly using these building blocks.

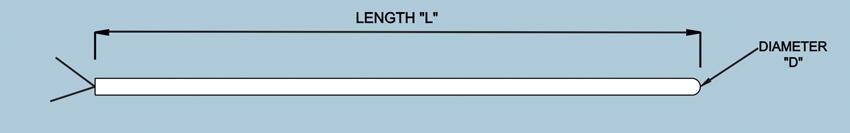

BASIC SENSOR ELEMENT

THERMOCOUPLE ASSEMBLY RESISTANCE TEMPERATURE DETECTORS SEMICONDUCTOR/ THERMISTOR / IC
ELEMENT CALIBRATION
Base Metal : Type K, Type J , Type T, Type E,Type N

Precious Metal : Type R, Type S, Type B, Type C, Type G

Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100 , Cu50
Thermistor -PTC & NTC Maxim DS18B20 LM35.
TYPE OF ELEMENT
Simplex / Duplex / Triplex
MODE OF CONNECTION
2 WIRE
2 WIRE
3 WIRE
4 WIRE
2 WIRE
JUNCTION TYPE
GROUNDED
UNGROUNDED/ISOLATED
EXPOSED
SHEATH MATERIAL
Stainless Steel
Inconel , Monel , Nimonic
Ceramics : Alumina , Beryllia , Hafnia
Exotic / Precious Metals : Tantalum / Platinum- Rhodium / Molybdenum
Other Sheath Materials also available on specific request.
ACCURACY LIMITS
As per ASTM . ANSI or DIN Standards
Class I or Class II Accuracy Limits
Class A , Class B ,DIN , 1/3 DIN ,1/10 DIN
As per the relevant sensor selected.

MEASURING TIP OPTIONS

LEAF TYPE PROBE


SPRING LOADED SURFACE PROBE
WASHER TYPE HEAD


SWAGED TIP

MAGNET PROBE HEAD

IMMERSION

ROLLER SURFACE PROBE
STATIONARY SURFACE SENSOR
WELD PAD TIP

STIK ON / CEMENT ON PATCH PROBE
RIGHT ANGLE MEASURING TIP

AIR/GAS TYPE PROBE

SURFACE PROBE
EXPOSED BEAD
PENETRATION / NEEDLE

SENSOR MOUNTING HARDWARE

Collect Mounting

Swagelok Type Compression Tube Fitting
Threaded Process Connection Fitting
Nipple
Bayonet- Spring Loaded
Bayonet Cap
Flange Fitting
Thermowells
3 PIECE UNION

TERMINATION TYPES

POT SEAL WITH EXTENSION LEADS
STANDARD SIZE THERMOCOUPLE CONNECTOR
TERMINAL HEAD - SINGLE ENTRY/ DOUBLE ENTRY
MINIATURE SIZE THERMOOUPLE CONNECTOR
POT SEAL WITH BARE LEADS

COILED CORD WITH MOLDED CONNECTOR
POT SEAL EXTENSION LEADS FLEXIBLE SS CONDUIT
HANDLE PROBE WITH LEADS AND CONNECTOR
M12 / SPECIAL CONNECTORS

3 FLAT/ROUND PIN RTD/THERMISTOR CONNECTOR
CERAMIC TERMINAL BLOCK

LEMO CONNECTORS
