Termination

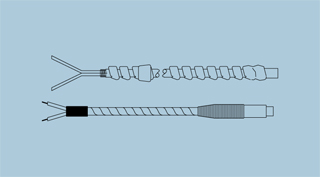

Termination Type : Pot Seal With
Extension Leads.
The Basic Sensor Element will be terminated in a pot seal from where the Extension Leads will originate.
Extension Leads can be Teflon , PVC, Silicon Rubber, Fiberglass insulated based on customer requirements.
The Extension Leads can be terminated by Stripped Bare Leads OR by U Shaped/ Round Lugs OR by a Connector.
The Basic Sensor Element will be terminated in a pot seal from where the Extension Leads will originate.
Extension Leads can be Teflon , PVC, Silicon Rubber, Fiberglass insulated based on customer requirements.
The Extension Leads can be terminated by Stripped Bare Leads OR by U Shaped/ Round Lugs OR by a Connector.

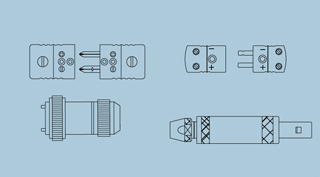

Termination Type : Connectors
The Basic Sensor Element Leads are terminated in a Connector. A Variety of Connectors can be offered .
The Basic Sensor Element Leads are terminated in a Connector. A Variety of Connectors can be offered .
- Standard & Miniature Size Thermocouple Connectors.
- LEMO Connectors
- MIL SPEC Connectors
- Circular Multipin Connectors - M8, M12 Threaded
- Hermetic Connectors
- DIN Rail Mounted Connectors

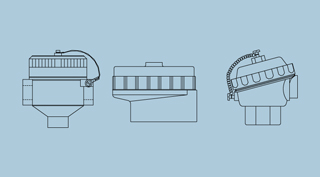

Termination Type : Terminal Head
The Sensor Element is terminated in a Enclosure - Terminal Head. A Ceramic / Bakelite or Plastic Terminal Block is accommodated inside the terminal. The Extension Leads and Sensor Element Leads are fixed on this terminal block.
Different Design Terminal Heads are available based on application and design of sensor. Contact us for details.
The Terminal Head is available in a variety of materials like Aluminium , Glass Filled Nylon Stainless Steel , Bakelite.
The Sensor Element is terminated in a Enclosure - Terminal Head. A Ceramic / Bakelite or Plastic Terminal Block is accommodated inside the terminal. The Extension Leads and Sensor Element Leads are fixed on this terminal block.
Different Design Terminal Heads are available based on application and design of sensor. Contact us for details.
The Terminal Head is available in a variety of materials like Aluminium , Glass Filled Nylon Stainless Steel , Bakelite.

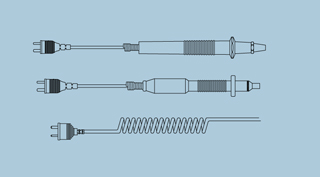

Termination Type : Handle Probes
For many laboratory applications , the user requires the sensor assembly to be portable / handheld for ease of use in his experiments.
We can terminate the Basic Sensor Element in a Probe Handle. The Handle will act as a transition pot seal between the Sensor Element and the Extension Leads.
Options of Coiled Cords , Molded Connectors can be provided on specific request.
For many laboratory applications , the user requires the sensor assembly to be portable / handheld for ease of use in his experiments.
We can terminate the Basic Sensor Element in a Probe Handle. The Handle will act as a transition pot seal between the Sensor Element and the Extension Leads.
Options of Coiled Cords , Molded Connectors can be provided on specific request.
COMBINATION OF TERMINATION TYPES
Many times , the sensor element may be terminated in more than one Termination Type. For Eg : Extensions Leads with Pot Seal Terminated in a Connector , Sensor Element with Terminal Head provided with Extension Leads etc. We can offer such specific requests based on customer specifications.
Many times , the sensor element may be terminated in more than one Termination Type. For Eg : Extensions Leads with Pot Seal Terminated in a Connector , Sensor Element with Terminal Head provided with Extension Leads etc. We can offer such specific requests based on customer specifications.
